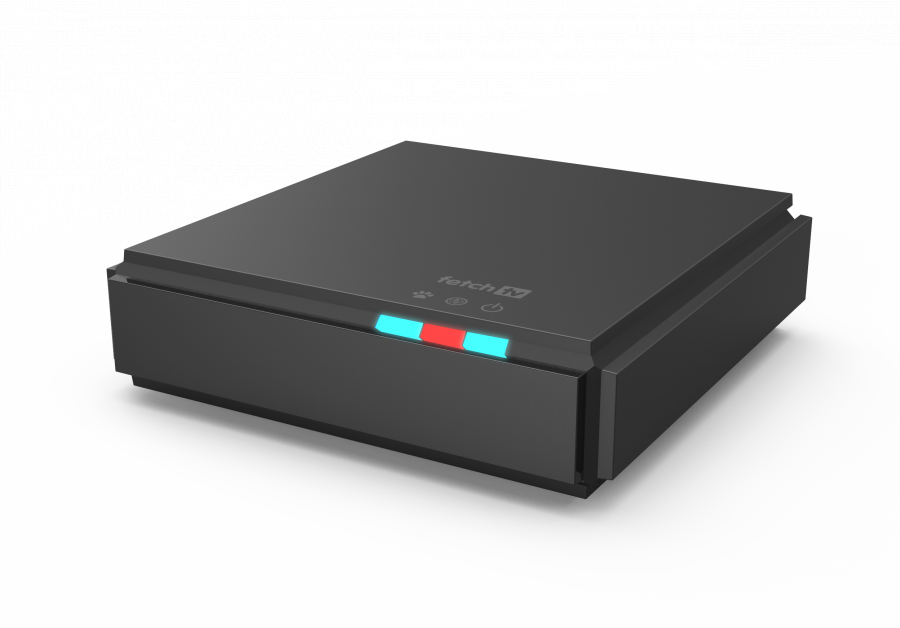

H626T - HD Hybrid STB with Wi-Fi 5

The Hybroad version 3.0 hybrid mini set-top box is a fully interactive HEVC High Definition DVB-T, IP platform with associated functionality and inter-connectivity options. The version 3.0 mini hardware has one terrestrial tuner and demodulator. The hardware utilizes the Broadcom HEVC microprocessor incorporating the latest secure processor technology, and is equipped with an HDMI interface, optical digital audio, a Gigabit Ethernet port, one USB port, Bluetooth and integrated Wi-Fi.

The Hybroad version 3.0 mini STB incorporates Verimatrix Conditional Access technology.

Product Gallery

View the embedded image gallery online at:
http://www.hybroad.com/component/k2/item/24-h626t-hd-hybrid-stb-with-wi-fi-5#sigProId24811ac02a

Specification

Processor: Quad-core ARM Cortex-B53 CPU, 24,000DMIPS, 3D GPU
RAM: 1G Byte
Flash Memory: 4G Byte EMMC
Operating System: Linux
Ethernet: 100M
Wi-Fi: 2x2 802.11ac
Bluetooth: Bluetooth 4.1
Front Panel: IR Receiver; LED

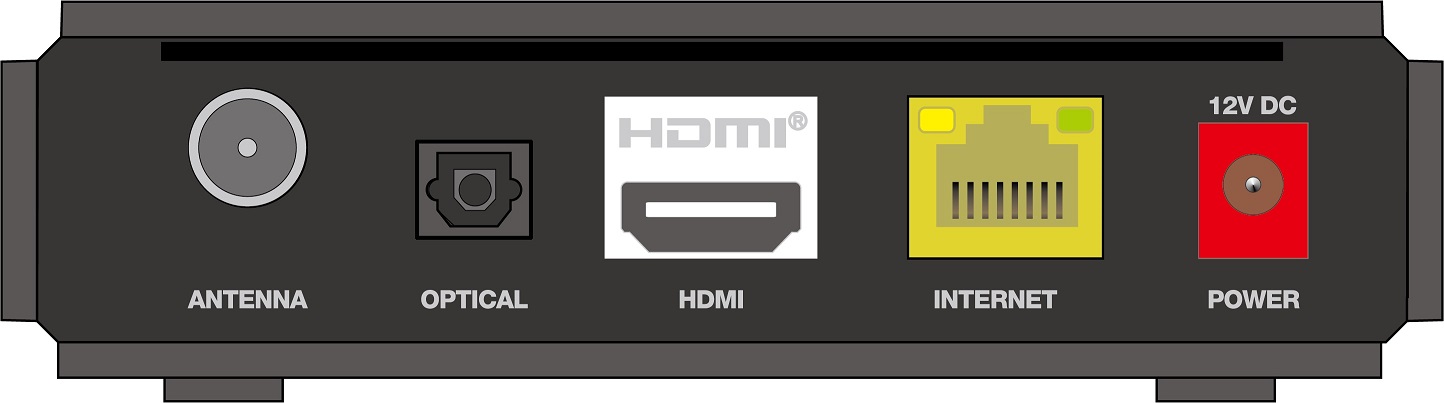

Back Panel: Power Input, HDMI 1.4, SPDIF, RJ45 (Ethernet)
Video Modes: 1080p, 1080i, 720p
Video Codec: HEVC Main and Main10 profile up to 1080p60, AVC High Profile up to 1080p60
Audio сodecs: MPEG-1 layer I/II, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital Plus ( Optional ), WMA ( Optional )
Tuner: DVB-T

Download attachments:

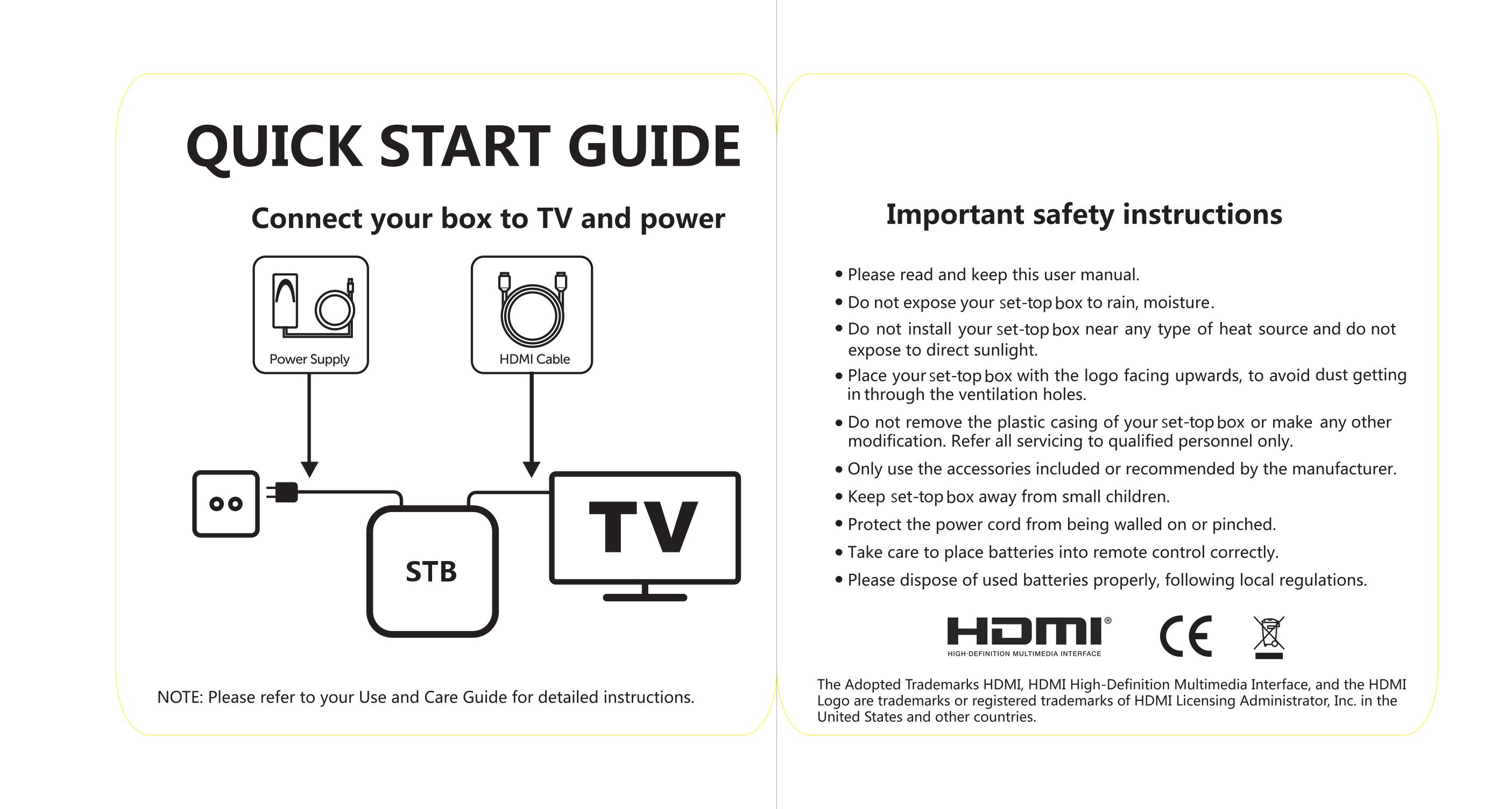

Quick_Start_Guide.pdf

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
