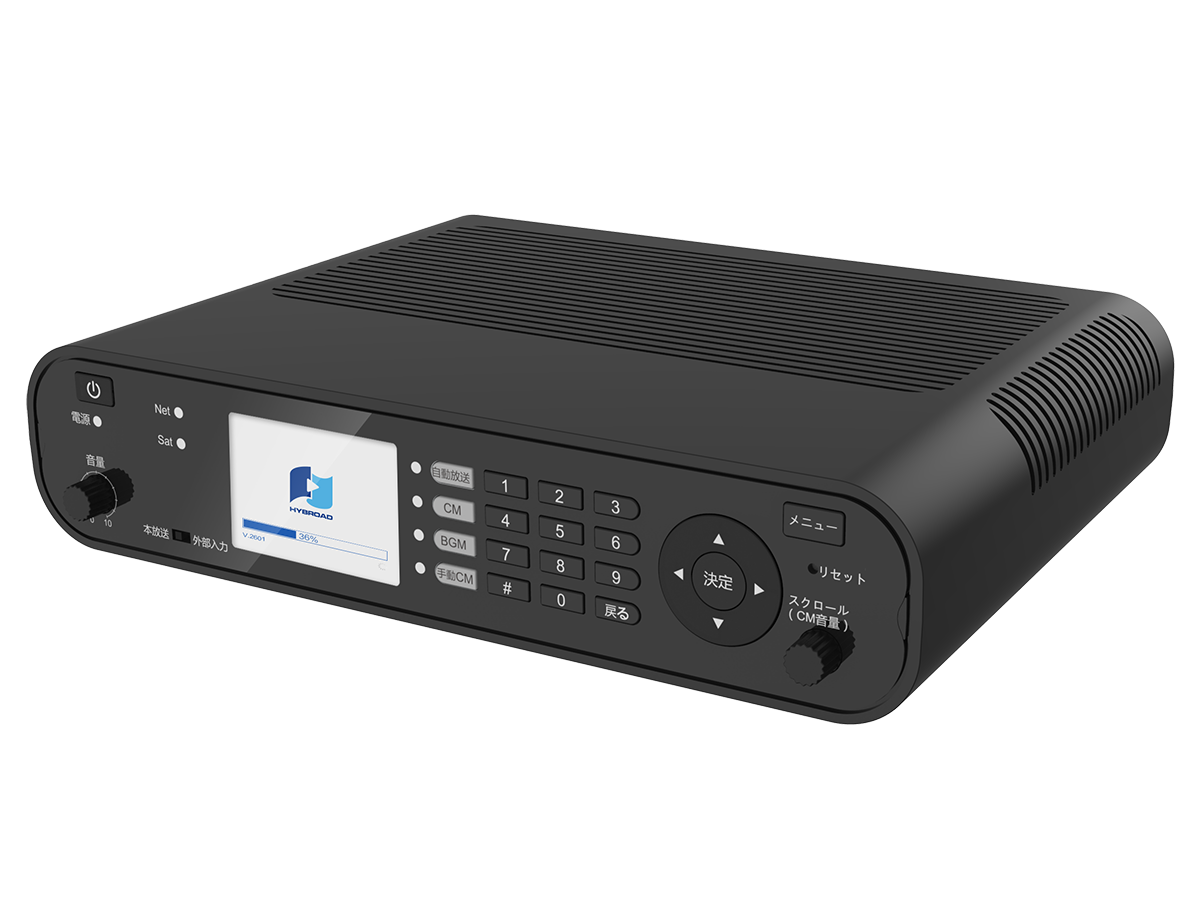

5536E Full Interface Music Box

The 5536E have friendly box design to allow user free control STB without TV display. Full buttons and LED display installed in front panel, equipped various output interface to suit for all kind scenarios, design specialized in in-store media services, audio visual services for business and implementing.








Product Gallery


  • Processor: Quad-core ARM Cortex-A7 CPU, 11,400DMIPS, Quad-core Mali450 GPU
  • RAM: 512M Byte
  • Flash Memory: 4G Byte EMMC
  • Operating System: Linux
  • Ethernet: 100M
  • Wi-Fi: 1x1 802.11n 2.4G
  • Bluetooth: None

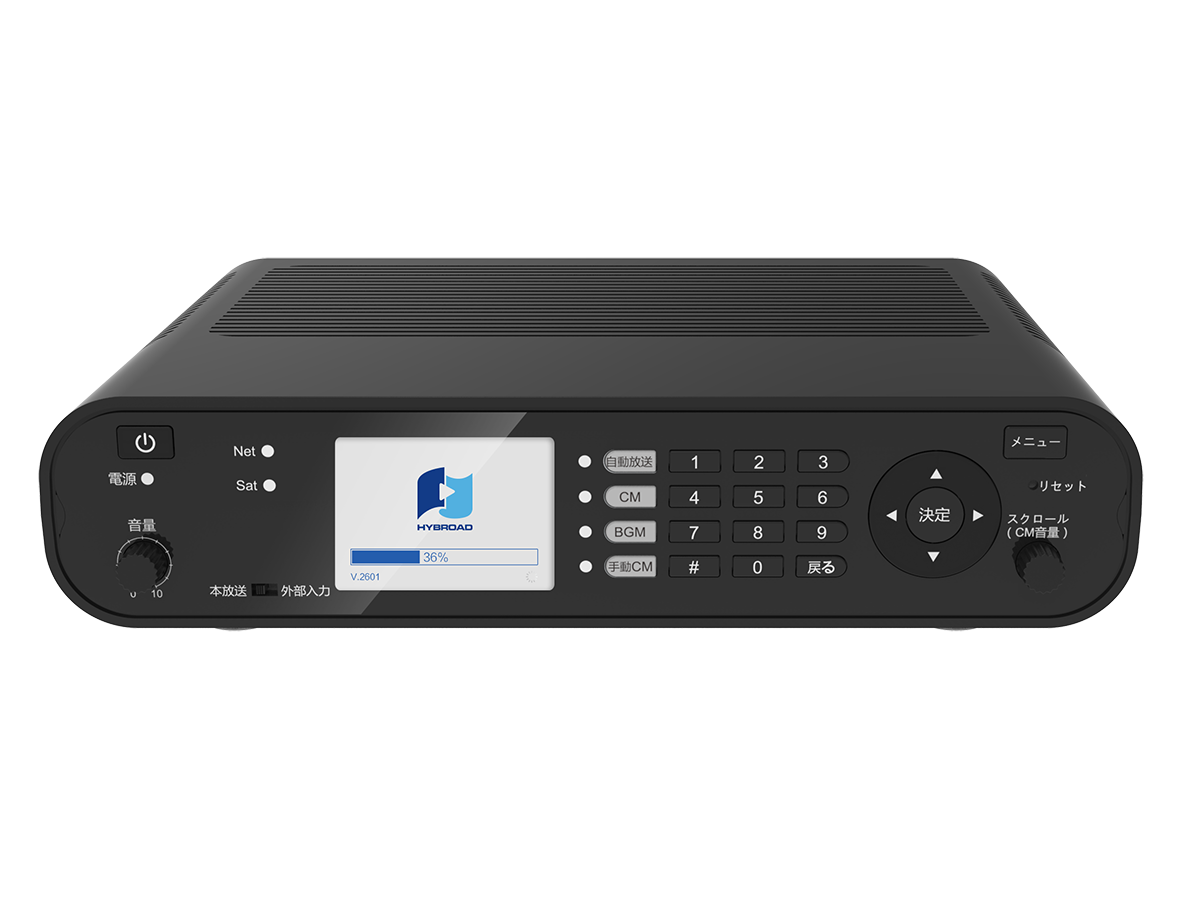

  • Front Panel: IR Receiver; 2*Button: Power, Menu; 3*LED: Showing Power ON/OFF, Network, Satellite; Reset; LCD(2.4 Inch TFT); Volume switch; 2*Volume knob; 5*Physical D-pad: Up | Down | OK | Right | Left; 16*Physical key-button: 0~9 digit | Back | # and 自動放送 | CM | BGM | 手動CM with 4*LED

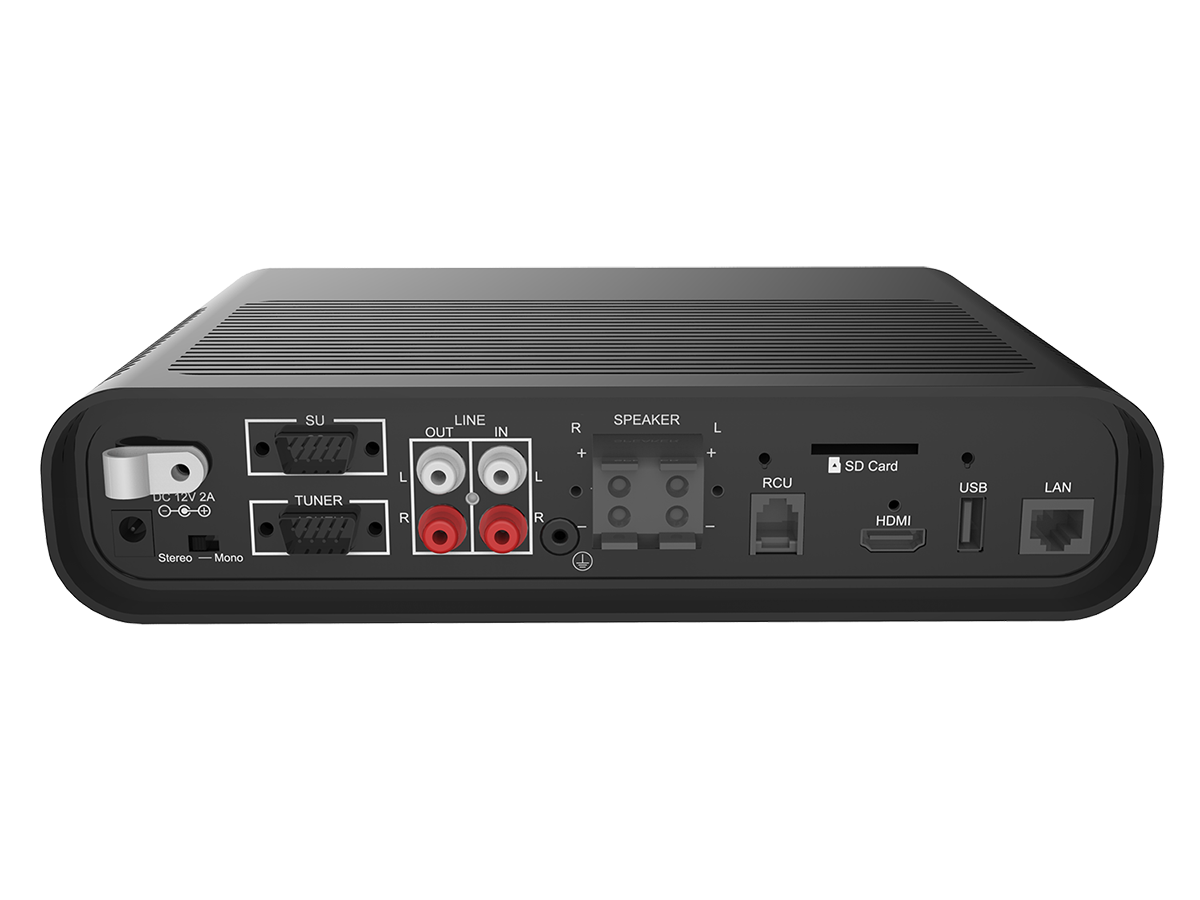

  • Back Panel: Power Input, HDMI 1.4, USB2.0 Type-A, RCA Audio, RJ12, SD Card
  • Video Modes: 1080p
  • Video Codec: HEVC Main and Main10 profile up to 1080p60, AVC High Profile up to 1080p60, MPEG-1/2, VC-1 ( Optional )
  • Audio сodecs: MPEG-1 layer I/II, AAC-LC, HE-AAC v1, HE-AAC v2, WMA ( Optional )
  • Tuner: None

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
